3.ComboBoxとListBox
戻るListCollectionView使用
データ操作にListCollectionViewを使用したComboBoxとListBoxのTipsを紹介します。

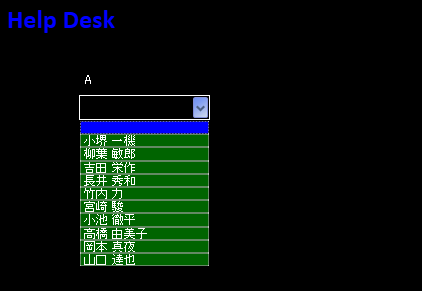

多彩に色を使ったComboBox
クリックすると拡大します
多彩に色を使ったComboBoxのZAMLは下記の通りです。
View
<ComboBox
ItemsSource="{Binding StaffListView}"
SelectedValue="{Binding SelectedValue, Mode=TwoWay}"
Height="25"
Margin="81,95,0,0"
Name="cmbCategory2"
BorderThickness="1" BorderBrush="White"
VerticalAlignment="Top"
HorizontalAlignment="Left"
Width="131" SelectedIndex="-1" >
<ComboBox.Resources>
<!-- Colour of ComboBoxItem -->
<SolidColorBrush x:Key="{x:Static SystemColors.WindowBrushKey}" Color="Black" />
<!-- Mouse over colour of ComboBoxItem -->
<SolidColorBrush x:Key="{x:Static SystemColors.HighlightBrushKey}" Color="Blue" />
</ComboBox.Resources>
<ComboBox.ItemContainerStyle>
<Style TargetType="ComboBoxItem">
<Setter Property="Background" Value="DarkGreen"/>
<Setter Property="BorderThickness" Value="0.6"/>
<Setter Property="BorderBrush" Value="White"/>
</Style>
</ComboBox.ItemContainerStyle>
</ComboBox>

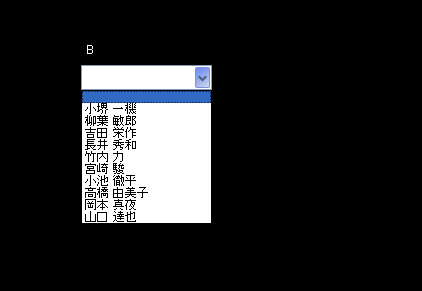

標準のComboBox
クリックすると拡大します
標準のComboBoxのZAMLは下記の通りです。
View
<ComboBox
ItemsSource="{Binding StaffListView}"
SelectedValue="{Binding SelectedValue, Mode=TwoWay}"
Height="25"
Margin="81,320,0,0"
Name="cmbCategory"
VerticalAlignment="Top"
HorizontalAlignment="Left"
Width="131" SelectedIndex="-1" />

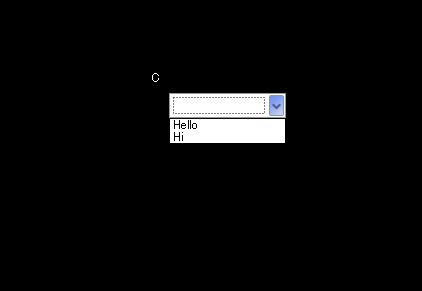

固定値のComboBox
クリックすると拡大します
固定値のComboBoxのZAMLは下記の通りです。
View
<ComboBox vm:xComboUtil.AllowNull="true" Margin="0,95,362,0" Height="25" Background="White" VerticalAlignment="Top" HorizontalAlignment="Right" Width="117"> <ComboBoxItem>Hello</ComboBoxItem> <ComboBoxItem>Hi</ComboBoxItem> </ComboBox>

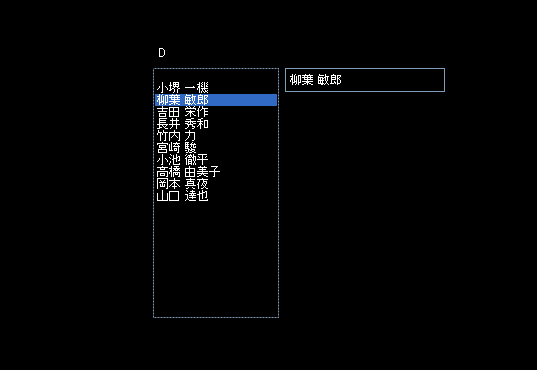

Backgroundを黒にしたListBox
クリックすると拡大します
Backgroundを黒にしたListBoxのZAMLは下記の通りです。
View
<ListBox Name="listBox1"
ItemsSource="{Binding StaffListView}"
Margin="534,320,0,0" HorizontalAlignment="Left" VerticalAlignment="Top"
Foreground="White" Background="Black" Width="126" Height="250">
</ListBox>
全部ZAMLを下記に示します。
View
<ccl:CustomChromeWindow
x:Class="LivetWPFChromeHelpDesk1.Views.Window7"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:shell="http://schemas.microsoft.com/winfx/2006/xaml/presentation/shell"
xmlns:ccl="clr-namespace:CustomChromeLibrary;assembly=CustomChromeLibrary"
xmlns:i="http://schemas.microsoft.com/expression/2010/interactivity"
xmlns:ei="http://schemas.microsoft.com/expression/2010/interactions"
xmlns:l="http://schemas.livet-mvvm.net/2011/wpf"
xmlns:core="clr-namespace:Microsoft.Expression.Interactivity.Core;assembly=Microsoft.Expression.Interactions"
xmlns:v="clr-namespace:LivetWPFChromeHelpDesk1.Views"
xmlns:vm="clr-namespace:LivetWPFChromeHelpDesk1.ViewModels"
WindowStartupLocation="CenterScreen"
Title="Window7" Height="714" Width="1035">
<shell:WindowChrome.WindowChrome>
<shell:WindowChrome
ResizeBorderThickness="6"
CaptionHeight="43"
CornerRadius="0,0,0,0"
GlassFrameThickness="0">
</shell:WindowChrome>
</shell:WindowChrome.WindowChrome>
<Window.Resources>
<ResourceDictionary>
<vm:XComboBoxEmptyItemConverter x:Key="XComboBoxEmptyItemConverter"/>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="/Resources/Styles.xaml"/>
<ResourceDictionary Source="/Resources/Styles2.xaml"/>
<ResourceDictionary Source="/Resources/StylesBG.xaml"/>
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Window.Resources>
<Window.DataContext>
<vm:ViewModel7/>
</Window.DataContext>
<i:Interaction.Triggers>
<l:InteractionMessageTrigger
MessageKey="MessageKey20" Messenger="{Binding Messenger}">
<l:TransitionInteractionMessageAction
WindowType="{x:Type v:Window20}" Mode="Modal"/>
</l:InteractionMessageTrigger>
<l:InteractionMessageTrigger
MessageKey="MessageKey21" Messenger="{Binding Messenger}">
<l:TransitionInteractionMessageAction
WindowType="{x:Type v:Window20}" Mode="Modal"/>
</l:InteractionMessageTrigger>
<!--WindowのContentRenderedイベントのタイミングでViewModelのInitializeメソッドが呼ばれます-->
<!--
<i:EventTrigger EventName="ContentRendered">
<l:LivetCallMethodAction MethodTarget="{Binding}" MethodName="Initialize"/>
</i:EventTrigger>
-->
<!-- 下記がないと、タスクバーが1つにならない -->
<i:EventTrigger EventName="Loaded">
<i:InvokeCommandAction Command="{Binding Path=Loaded}"
CommandParameter="{Binding Mode=OneTime,RelativeSource={RelativeSource Mode=FindAncestor,AncestorType={x:Type Window}}}"/>
</i:EventTrigger>
<!-- Activatedを設定する -->
<i:EventTrigger EventName="Activated" >
<i:InvokeCommandAction Command="{Binding Activated}" />
</i:EventTrigger>
<!--
<i:EventTrigger EventName="Closing">
<i:InvokeCommandAction Command="{Binding Path=Closing}"
CommandParameter="{Binding Mode=OneTime,RelativeSource={RelativeSource Mode=FindAncestor,AncestorType={x:Type Window}}}"/>
</i:EventTrigger>
<l:InteractionMessageTrigger MessageKey="Close" Messenger="{Binding Messenger}">
<l:WindowInteractionMessageAction/>
</l:InteractionMessageTrigger>
-->
</i:Interaction.Triggers>
<!-- Grid-1 -->
<Grid>
<!-- WindowChrome Start -->
<Border Grid.RowSpan="2" BorderThickness="3" BorderBrush="Black">
<Border.Background>
<LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
<GradientStop Color="Black" Offset="0" />
<GradientStop Color="Black" Offset="1" />
</LinearGradientBrush>
</Border.Background>
</Border>
<Border BorderThickness="3,3,3,1" BorderBrush="Black" Margin="{Binding Path=CaptionButtonMargin}">
<Border.Background>
<LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
<GradientStop Color="Black" Offset="0" />
<GradientStop Color="Black" Offset="1" />
</LinearGradientBrush>
</Border.Background>
<!--Window Icon and Title-->
<StackPanel Orientation="Horizontal" Margin="0" VerticalAlignment="Top">
<TextBlock Text=" Help Desk" FontFamily="Calibri" FontWeight="Bold" FontSize="26" Foreground="Blue" />
</StackPanel>
</Border>
<ccl:CaptionButtons />
<!-- WindowChrome End -->
<!-- Grid-2 -->
<!--Content-->
<Grid Grid.Row="1">
<!-- ★★★ -->
<Grid>
<TextBox Text="{Binding Path=txt本日}" TextAlignment="Center"
Foreground="White" Background="Black"
Height="17" HorizontalAlignment="Center" Name="txt本日"
VerticalAlignment="Top" Width="81" Margin="809,3,123,0" />
<ComboBox
ItemsSource="{Binding StaffListView}"
SelectedValue="{Binding SelectedValue, Mode=TwoWay}"
Height="25"
Margin="81,320,0,0"
Name="cmbCategory"
VerticalAlignment="Top"
HorizontalAlignment="Left"
Width="131" SelectedIndex="-1" />
<ComboBox
ItemsSource="{Binding StaffListView}"
SelectedValue="{Binding SelectedValue, Mode=TwoWay}"
Height="25"
Margin="81,95,0,0"
Name="cmbCategory2"
Foreground="White" Background="Black"
BorderThickness="1" BorderBrush="White"
VerticalAlignment="Top"
HorizontalAlignment="Left"
Width="131" SelectedIndex="-1" >
<ComboBox.Resources>
<!-- Colour of ComboBoxItem -->
<SolidColorBrush x:Key="{x:Static SystemColors.WindowBrushKey}" Color="Black" />
<!-- Mouse over colour of ComboBoxItem -->
<SolidColorBrush x:Key="{x:Static SystemColors.HighlightBrushKey}" Color="Blue" />
</ComboBox.Resources>
<ComboBox.ItemContainerStyle>
<Style TargetType="ComboBoxItem">
<Setter Property="Background" Value="DarkGreen"/>
<Setter Property="BorderThickness" Value="0.6"/>
<Setter Property="BorderBrush" Value="White"/>
</Style>
</ComboBox.ItemContainerStyle>
</ComboBox>
<ComboBox vm:xComboUtil.AllowNull="true" Margin="0,95,362,0"
Height="25" Background="White"
VerticalAlignment="Top"
HorizontalAlignment="Right" Width="117">
<ComboBoxItem>Hello</ComboBoxItem>
<ComboBoxItem>Hi</ComboBoxItem>
</ComboBox>
<ListBox Name="listBox1"
ItemsSource="{Binding StaffListView}"
Margin="534,320,0,0" HorizontalAlignment="Left" VerticalAlignment="Top"
Foreground="White" Background="Black" Width="126" Height="250">
</ListBox>
<TextBox Text="{Binding Path=txtMessage, Mode=TwoWay}" VerticalContentAlignment="Center"
Foreground="White" Background="Black" Height="24" HorizontalAlignment="Left"
Margin="666,320,0,0" VerticalAlignment="Top" Width="160" />
<Label Content="A" Foreground="White" Height="20" HorizontalAlignment="Left" Margin="81,69,0,0" Name="label1" VerticalAlignment="Top" Width="24" />
<Label Content="B" Foreground="White" Height="20" HorizontalAlignment="Left" Margin="81,294,0,0" Name="label2" VerticalAlignment="Top" Width="24" />
<Label Content="C" Foreground="White" Height="20" HorizontalAlignment="Left" Margin="534,69,0,0" Name="label3" VerticalAlignment="Top" Width="24" />
<Label Content="D" Foreground="White" Height="20" HorizontalAlignment="Left" Margin="534,294,0,0" Name="label4" VerticalAlignment="Top" Width="24" />
</Grid>
<!-- ★★★ -->
</Grid>
</Grid>
</ccl:CustomChromeWindow>
ViewModelは下記の通りです。
ViewModel
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Text;
using System.ComponentModel;
using Livet;
using Livet.Commands;
using Livet.Messaging;
using Livet.Messaging.IO;
using Livet.EventListeners;
using Livet.Messaging.Windows;
//ICommand
using System.Windows.Input;
using System.Data.OracleClient;
// ListCollectionView
using System.Windows.Data;
//MessageBox
using System.Windows;
using LivetWPFChromeHelpDesk1.Models;
using LivetWPFChromeHelpDesk1.Views;
using LivetWPFChromeHelpDesk1.ViewModels;
//ComboBox
using System.Windows.Controls;
namespace LivetWPFChromeHelpDesk1.ViewModels
{
class ViewModel7 : ViewModel
{
#region 変更通知プロパティ
//-----------------------------------------------
//public string txtMessage { get; set; }
private string _txtMessage;
public string txtMessage
{
get { return _txtMessage; }
set
{
_txtMessage = value;
RaisePropertyChanged("txtMessage");
}
}
public string txt本日 { get; set; }
public bool IsEnabled { get; set; }
private string _SelectedValue;
public string SelectedValue
{
get
{
return _SelectedValue;
}
set
{
if (value == _SelectedValue)
return;
_SelectedValue = value;
RaisePropertyChanged("SelectedValue");
}
}
#endregion
//-----------------------------------------------
Window win = null;
public ViewModel7()
{
Loaded = new Livet.Commands.ListenerCommand<Window>((w) =>
{
if (NeedHideOwner && w.Owner != null && w.Owner.Visibility == Visibility.Visible)
{
win = w;
//w.Owner.Hide();
}
});
Activated = new Livet.Commands.ListenerCommand<Window>((w) =>
{
if (win != null) win.Owner.Hide();
//★ListCollectionView 5-2
this.StaffList = new List<string>();
GetPersonData();
//★ListCollectionView 5-4
this.StaffListView = new ListCollectionView(this.StaffList);
this.StaffListView.CurrentChanged += StaffListView_CurrentChanged;
//下記のRefreshでListBoxへバインドを実行させます
this.StaffListView.Refresh();
});
//Initialize()では表示されない
txt本日 = Convert.ToString(DateTime.Today.ToShortDateString());
}
public bool NeedHideOwner { get; set; }
public ICommand Loaded { get; private set; }
public ICommand Activated { get; private set; }
#region StaffListView 社員一覧(ComboBox)
//★ListCollectionView 5-1
private List<string> StaffList;
/// <summary>
/// 社員一覧(ListBox)
/// </summary>
private ListCollectionView _StaffListView;
public ListCollectionView StaffListView
{
get
{ return _StaffListView; }
set
{
if (_StaffListView == value)
return;
_StaffListView = value;
RaisePropertyChanged("StaffListView");
}
}
/// <summary>
/// リストの位置が変わった
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
void StaffListView_CurrentChanged(object sender, EventArgs e)
{
this.StaffListView.Refresh();
//
var lv = sender as ICollectionView;
if (lv.CurrentPosition < 0)
{
System.Diagnostics.Trace.WriteLine("選択無し");
return;
}
txtMessage = lv.CurrentItem as string;
// 何か処理を記述
}
#endregion
#region Read
private void Read()
{
}
#endregion
#region GetDataCommandコマンド
private ViewModelCommand _getDataCommand;
public ViewModelCommand GetDataCommand
{
get
{
if (_getDataCommand == null)
{
_getDataCommand = new ViewModelCommand(GetPersonData);
}
return _getDataCommand;
}
}
public void GetPersonData()
{
string CmdString = string.Empty;
using (OracleConnection con = new OracleConnection())
{
con.ConnectionString = "User Id=beluran; Password=beluran; Data Source=beluran;Pooling=false;";
con.Open();
//
CmdString = "SELECT 社員姓名 FROM 社員マスター ";
OracleCommand oracmd = new OracleCommand(CmdString, con);
OracleDataReader reader = oracmd.ExecuteReader();
//*** Tran ***
//tx.Commit();
int i = 1;
while (reader.Read() == true)
{
if (i == 1)
{
this.StaffList.Add("");
}
this.StaffList.Add(reader["社員姓名"].ToString());
i++;
}
}
}
#endregion
#region isTextBoxVisible
private bool isTextBoxVisible;
public bool IsTextBoxVisible
{
get { return isTextBoxVisible; }
set
{
isTextBoxVisible = value;
RaisePropertyChanged("IsTextBoxVisible");
}
}
#endregion
#region GotoCommand
//---------------------------------------------------------------
public ViewModelCommand GotoCommand2
{
get { return new Livet.Commands.ViewModelCommand(Goto2); }
}
public void Goto2()
{
Messenger.Raise(new TransitionMessage(new ViewModel2() { NeedHideOwner = true }, "MessageKey2"));
}
//----------------------------------------------------------------
#endregion
#region ActivatedCommand
public ICommand ActivatedCommand
{
get { return new DelegateCommand<object>(Handle); }
}
public void Handle(object o)
{
txtMessage = "5555555555555555";
}
#endregion
#region CloseCommand
private ViewModelCommand _CloseCommand;
public ViewModelCommand CloseCommand
{
get
{
if (_CloseCommand == null)
{
_CloseCommand = new ViewModelCommand(Close);
}
return _CloseCommand;
}
}
public void Close()
{
var window = Application.Current.Windows.OfType<Window>().SingleOrDefault((w) => w.IsActive);
window.Close();
}
#endregion
}
}
